Nov 24, 2025 Reliable Study Materials for NSE6_WCS-7.0 Exam Success For Sure
100% Latest Most updated NSE6_WCS-7.0 Questions and Answers
The Fortinet NSE6_WCS-7.0 exam covers a broad range of topics, including network security, application security, data security, and access control. It also covers the use of various AWS security services, such as AWS Identity and Access Management (IAM), AWS Key Management Service (KMS), and AWS CloudTrail. Candidates are expected to have a deep understanding of these services and their use cases.
NEW QUESTION # 19
Which three statements are correct about VPC flow (Choose three.)
- A. Flow logs do not capture traffic to andfrom169.2 54 .169.254 for instance metadata.
- B. Flow logs do not capture DHCP traffic.
- C. Flow logs can capture real-time log streams for the network interfaces.
- D. Flow logs can capture traffic to the reserved IP address for the default VPC router.
- E. Flow logs can be used as a security tool to monitor the traffic that is reaching the instance.
Answer: A,B,E
NEW QUESTION # 20
A customer is attempting to deploy an active-passive high availability (HA) cluster using the software-defined network (SDN) connector in the AWS cloud.
What is an important consideration to ensure a successful formation of HA, failover, and traffic flow?
- A. VDOM exceptions must be configured.
- B. Both cluster members must show as healthy in the elastic load balancer (ELB) configuration.
- C. Unicast FortiGate Clustering Protocol (FGCP) must be used.
- D. Both cluster members must be in the same availability zone.
Answer: C
Explanation:
* HA Cluster in AWS Cloud:
* Deploying an active-passive HA cluster in AWS requires careful consideration of the clustering protocol used to ensure seamless failover and traffic flow.
* Unicast FortiGate Clustering Protocol (FGCP):
* Unicast FGCP is specifically designed for environments where multicast traffic is not feasible or supported, such as in the AWS cloud. Using unicast FGCP ensures that heartbeat and synchronization traffic between the cluster members are managed correctly over unicast communication, which is suitable for AWS's network infrastructure (Option C).
* Comparison with Other Options:
* Option A is incorrect because while placing both cluster members in the same availability zone might be required for certain configurations, it is not the critical factor for HA formation.
* Option B is incorrect as VDOM exceptions are not directly related to the successful formation of HA.
* Option D is incorrect because the ELB configuration checks are more about ensuring that the load balancer correctly routes traffic but do not specifically ensure HA formation and failover.
References:
* FortiGate HA in AWS Documentation: FortiGate HA
* Fortinet FGCP Details: FGCP Documentation
NEW QUESTION # 21
Refer to the exhibit.
An administrator wants to update the database package from the Internet to a database server configured with IP address Which statement is correct about traffic from server IP address 10.0.1.7 to the internet. based on the diagrarm?
- A. Traffic from server 10.0.1.7 to the internet will hide behind elastic IP 198.51.100.1
- B. Traffic from server 10.0.1.7 to the internet will hide behind elastic IP 198.51.100.3
- C. Traffic from server 10.0.1.7 to the internet will hide behind elastic IP 198.51.100 2.
- D. Traffic from server10.0.1.7 to the internet will hide behind elastic IP 198.51.100.4
Answer: D
NEW QUESTION # 22
Which two statements are correct about AWS Network Access Control Lists (NACLS)? (Choose two.)
- A. VPC automatically comes with a modifiable default NACL, and by default it denies all inbound and outbound IPv4 traffic.
- B. An NACL has separate inbound and outbound rules, and each rule can either allow or deny traffic.
- C. By default. each custom NACL allows all inbound and outbound traffic unless you add new rules,
- D. NACLs are stateless: responses to allowed inbound traffic are subject to the rules for outbound traffic.
Answer: B,D
NEW QUESTION # 23
Which product you Can use as AWS WAF web access control lists (web ACLS) to minimize the effects Of a DDOS attack?
- A. AWS Shield
- B. AWS Inspector
- C. AWS Protector
- D. AWS GuardDuty
Answer: A
NEW QUESTION # 24
Refer to the exhibit.
You have created an autoscale configuration using a FortiGate HA Cloud Formation template. You want to examine the autoscale FortiOS configuration to confirm that FortiGate autoscale is configured to synchronize primary and secondary devices. On one of the FortiGate devices, you execute the command shown in the exhibit.
Which statement is correct about the output of the command?
- A. The device is the secondary in the HA configuration, and the IP address Of the primary device is
10.0.0.173. - B. The device is the primary in the HA configuration. with the IP address 10.0.0.173.
- C. The device is the primary in the HA configuration and the IP address of the secondary device is10.0.0.173.
- D. The device is the secondary in the HA configuration. with the IP address 10.0.0.173.
Answer: A
NEW QUESTION # 25

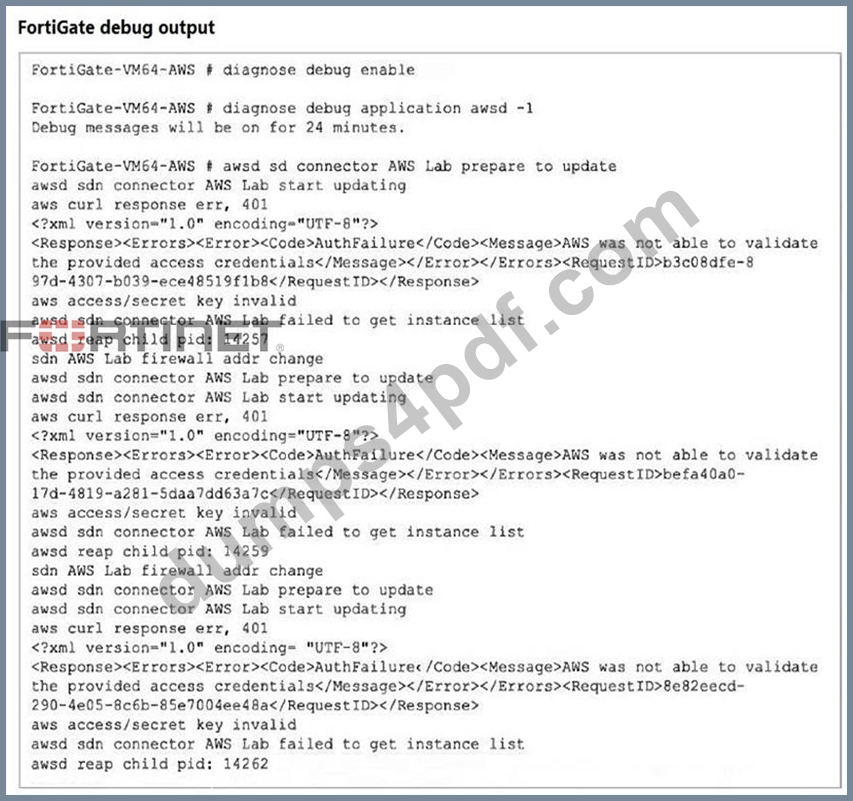

Refer to the exhibit.
An administrator configured a FortiGate device to connect to me AWS API to retrieve resource values from the AWS console to create dynamic objects for the FortiGatepolicies. The administrator is unable to retrieve AWS dynamic objects on FortiGate.
Which three reasons can explain btw? (Choose three.)
- A. The AWS Lab SON connector is configured with an invalid AWS access or secret key
- B. The AWS Lab SON connector failed to retrieve the instance list.
- C. AWS was not able to validate credentials provided by the AWS Lab SON connector.
- D. The AWS Lab SON connector failed to connect on port 401.
- E. The AWS API call is not supported on XML version I . O.
Answer: A,B,C
NEW QUESTION # 26
Which statement is true about an Elastic Network Interface (ENI)?
- A. When youmove an ENI, network traffic is not redirected to the new instance.
- B. Once ENI detaches from one instance. it cannot reattach to another instance.
- C. An ENI cannot move between AZs.
- D. You can detach primary ENI from an AWS instance.
Answer: C
NEW QUESTION # 27
As part of the security plan you have been tasked with deploying a FortiGate in AWS.
Which two are the security responsibility of the customer in a cloud environment? (Choose two.)
- A. Traffic encryption
- B. Virtualization platform
- C. Storage infrastructure
- D. User management
Answer: A,D
NEW QUESTION # 28
You want to deploy the Fortinet HA cloud formation template to stage and bootstrap the FortiGate configuration in the same that you created your VPC, Which is Ohio US-East-2.
Based on this information, which statement is correct?
- A. You must create an S3 bucket to stage and bootstrap FortiGate with an FGCP unicast configuration in any region.
- B. You must create an S3 bucket to stage and bootstrap FortiGate with an FGCP unicast configuration in the Ohio US-East-2 region.
- C. You must create an S3 bucket to stage and bootstrap FortiGate with an FGCP multicast configuration in the Ohio US-East-2 region.
- D. The Fortinet HA cloud formation template automatically creates an S3 bucket.
Answer: D
NEW QUESTION # 29
You want to deploy FortiGate for AWS to protect your production network in the cloud. but you do not need the 2417 support available in the enterprise bundle.
Which license model do you choose?
- A. pay as you go (PAYG).
- B. Bring your own device (BYOD)
- C. Pay as a bundle (PAYB).
- D. Bring your own license (BYOL).
Answer: A
NEW QUESTION # 30
Refer to the exhibit.
Which statement is correct about the VPC peering connections shown in the exhibit?
- A. You can associate VPC ID pcx-23232323 with VPC B to form a VPC peering connection between VPC B and VPC C.
- B. You cannot create a VPC peering connection between VPC B and VPC C to route packets directly.
- C. You cannot route packets directly from VPC B to VPC C through VPC A.
- D. TO route packets directly from VPC B to VPC C through VPC A, you must add a route for network 192.168.0.0/16 in the VPC A routing table.
Answer: C
NEW QUESTION # 31
Which three statements are correct about VPC flow logs? (Choose three.)
- A. Flow logs do not capture DHCP traffic.
- B. Flow logs do not capture traffic to and from 169.254.169.254 for instance metadata.
- C. Flow logs can capture real-time log streams for the network interfaces.
- D. Flow logs can capture traffic to the reserved IP address for the default VPC router.
- E. Flow logs can be used as a security tool to monitor the traffic that is reaching the instance.
Answer: A,B,E
Explanation:
* Instance Metadata Traffic:
* VPC flow logs do not capture traffic to and from the link-local address 169.254.169.254, which is used for accessing instance metadata (Option A).
* DHCP Traffic:
* DHCP traffic is not captured by VPC flow logs. This is because DHCP relies on broadcast and multicast traffic, which is excluded from flow logs (Option B).
* Security Monitoring:
* VPC flow logs can be used as a security tool to monitor the traffic that is reaching the instances.
By analyzing the flow logs, administrators can detect suspicious activities and troubleshoot connectivity issues (Option D).
* Other Considerations:
* Option C is incorrect because flow logs do capture traffic to the reserved IP address of the default VPC router.
* Option E is incorrect as VPC flow logs do not provide real-time log streams but rather capture data at intervals and deliver them to CloudWatch or S3.
References:
* AWS VPC Flow Logs Documentation: VPC Flow Logs
* AWS Networking and Security: AWS Security Monitoring
NEW QUESTION # 32
An administrator has been asked to deploy an active-passive (A-P) FortiGate cluster in the AWS cloud across two availability zones.
In addition to enhanced redundancy, which other major difference is there compared to deploying A-P high availability in the same availability zone?
- A. IP addressing and subnetting are not shared.
- B. Secondary IP address configuration is used.
- C. The FortiGate devices act as a single, logical instance.
- D. The number of subnets required is less.
Answer: A
Explanation:
* Enhanced Redundancy:
* Deploying an active-passive (A-P) FortiGate cluster across two availability zones (AZs) provides enhanced redundancy by ensuring that if one AZ fails, the other can take over, maintaining high availability and uptime.
* IP Addressing and Subnetting:
* One of the major differences when deploying across different AZs compared to the same AZ is that IP addressing and subnetting are not shared between the instances. Each AZ operates independently with its own set of subnets and IP addresses, which must be managed separately (Option D).
* Other Options Analysis:
* Option A is incorrect because the FortiGate devices in an A-P setup do not act as a single logical instance; they operate in a failover setup.
* Option B is incorrect because secondary IP address configuration is used in both single AZ and multi-AZ deployments.
* Option C is incorrect because the number of subnets required is typically more when deploying across multiple AZs for redundancy.
References:
* FortiGate HA Configuration Guide: FortiGate HA
* AWS Availability Zones: AWS AZ
NEW QUESTION # 33
What is the purpose of the created as part Of a FortiGate autoscale deployment using Fortinet cloud formation template in AWS?
- A. To store the traffic logs Of all FortiGates.
- B. To Store the information used for the scale set.
- C. To store information about varying states of auto scaling conditions.
- D. To store the firewall policies used by all FortiGates_
Answer: C
NEW QUESTION # 34

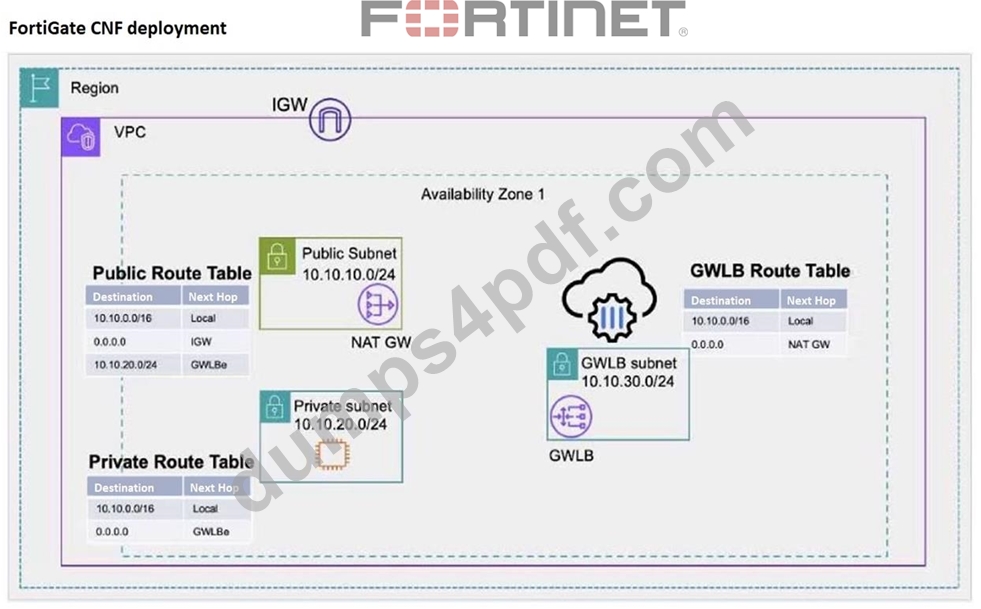

Refer to the exhibit.
Traffic is initiated from the EC2 instance and is destined for the internet.
Which traffic flow is correct?
- A. EC2 instance > GWLBe > internet
- B. EC2 instance > NAT GW > IGW > internet
- C. There is no route to the internet in the Private Route Table. The traffic does not reach the internet.
- D. EC2 instance > GWLBe > NAT GW > IGW > internet
Answer: D
Explanation:
* Understanding the Architecture:
* The architecture includes an EC2 instance in a private subnet, a Gateway Load Balancer Endpoint (GWLBe), a NAT Gateway (NAT GW), and an Internet Gateway (IGW).
* Route Tables and Routing:
* The private route table for the subnet containing the EC2 instance has a route pointing to the GWLBe for internet-bound traffic.
* The public route table for the subnet containing the NAT Gateway has routes to the IGW.
* Traffic Flow Analysis:
* Traffic initiated from the EC2 instance destined for the internet will first be routed to the GWLBe as per the private route table.
* The GWLBe will forward the traffic to the NAT Gateway.
* The NAT Gateway will then route the traffic to the IGW, which finally sends the traffic to the internet.
* Comparison with Other Options:
* Option A suggests direct routing to the NAT GW from the EC2 instance, which is incorrect.
* Option B incorrectly states there is no route to the internet in the private route table.
* Option D suggests direct routing from GWLBe to the internet, which is not the case.
References:
* AWS Documentation on Route Tables: AWS Route Tables
* Gateway Load Balancer Overview: AWS Gateway Load Balancer
NEW QUESTION # 35
Which three Fortinet products are available in Amazon Web Services in both on-demand and bring your own license (BYOL) formats? (Choose three.)
- A. FortiWeb
- B. FortiSOAR
- C. FortiGate
- D. FortiADC
- E. FortiSlEM
Answer: A,C,D
NEW QUESTION # 36

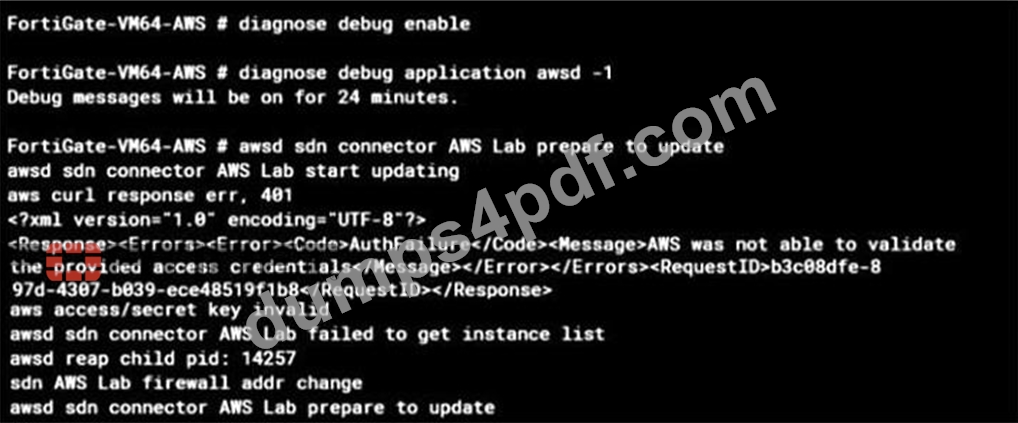

Refer to the exhibit.
An administrator configured a FortiGate device to connect to the AWS API to retrieve resource values from the AWS console to create dynamic objects for the FortiGate policies. The administrator is unable to retrieve AWS dynamic objects on FortiGate.
Which two reasons can explain why? (Choose two.)
- A. The AWS API call is not supported on XML version 1.0.
- B. AWS was not able to validate credentials provided by the AWS Lab SDN connector because of a clock skew between FortiGate and AWS.
- C. The AWS Lab SDN connector is configured with an invalid AWS access or secret key.
- D. The AWS Lab SDN connector failed to connect on port 401.
- E. The AWS Lab SDN did not find any instances in the configured VPC.
Answer: B,C
Explanation:
* Invalid Credentials:
* The debug output shows an "AuthFailure" error, indicating that AWS was not able to validate the provided access credentials. This usually points to incorrect or invalid AWS access or secret keys configured in the AWS Lab SDN connector (Option C).
* Clock Skew:
* Another common reason for authentication failures in AWS API calls is a clock skew between the FortiGate device and AWS. AWS requires that the system time of the client making the API call is synchronized with its own time, within a small margin. If there is a significant time difference, AWS will reject the credentials (Option B).
* Other Options Analysis:
* Option A is incorrect because the AWS API supports XML version 1.0.
* Option D is incorrect as the error message does not indicate an issue with connecting on port 401.
* Option E is incorrect because the error is related to authentication, not the absence of instances.
References:
* AWS API Authentication: AWS API Security
* FortiGate AWS Integration Guide: FortiGate AWS Integration
NEW QUESTION # 37
An AWS administrator is designing internet connectivity for an organization's virtual public cloud (VPC).
The organization has web servers with private addresses that must be reachable from the internet. The web servers must be highly available.
Which two configurations can you use to ensure the web servers are highly available and reachable from the internet? (Choose two.)
- A. Deploy a network load balancer.
- B. Configure a network address translation (NAT) Gateway in your VPC. Place web servers behind the NAT Gateway.
- C. Deploy web servers in multiple availability zones.
- D. Add a route to the default virtual public cloud (VPC) route table forwarding all traffic to the internet gateway.
Answer: A,C
Explanation:
* Network Load Balancer:
* Deploying a network load balancer ensures that incoming traffic is distributed across multiple web servers, providing high availability and redundancy. This setup helps in managing traffic efficiently and maintaining service uptime even if some servers fail (Option A).
* Multiple Availability Zones:
* Deploying web servers in multiple availability zones (AZs) enhances fault tolerance and availability. If one AZ goes down, servers in other AZs can continue to handle the traffic, ensuring the web application remains accessible (Option D).
* Other Options Analysis:
* Option B is incorrect because NAT Gateways are used to provide internet access to instances in private subnets, not to make private addresses reachable from the internet.
* Option C is not sufficient on its own for high availability. Adding a route to the default VPC route table forwarding traffic to the internet gateway makes the VPC internet-accessible but does not ensure high availability.
References:
* AWS High Availability and Fault Tolerance: AWS High Availability
* AWS Network Load Balancer: Network Load Balancer
NEW QUESTION # 38

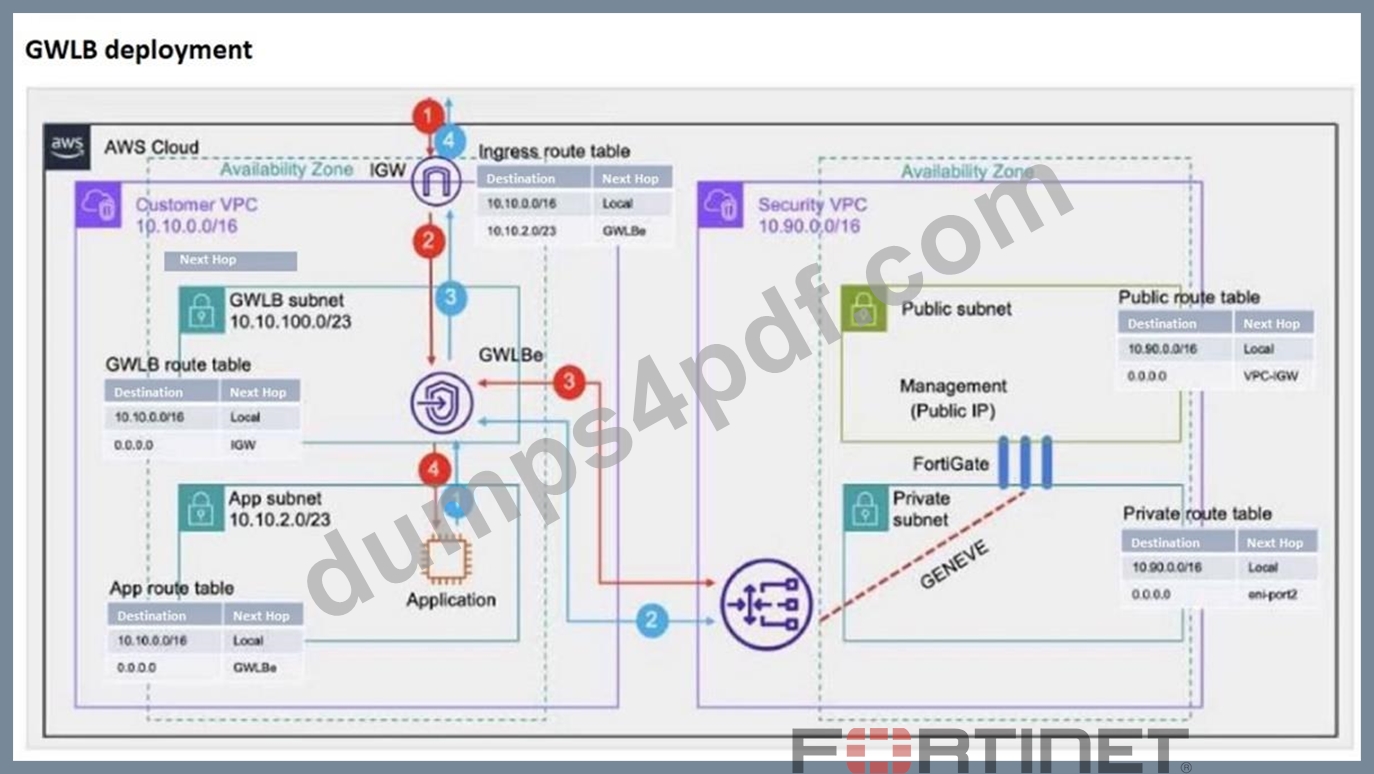

Refer to the exhibit.
Which two statements are true about inbound traffic based on the IGW ingress route table and GWLB deployment shown in the exhibit? (Choose two.)
- A. Inbound traffic is directed to the application subnet through a GWLB endpoint.
- B. Inbound traffic is directed to the GWLB through a GWLB endpoint.
- C. GWLB encapsulates traffic with the GENEVE protocol and sends it to FortiGate.
- D. GWLB forwards traffic to FortiGate without encapsulation in its dedicated subnet.
Answer: B,C
Explanation:
* Traffic Direction through GWLB Endpoint:
* The ingress route table directs inbound traffic to the GWLB through a GWLB endpoint (GWLBe). This endpoint is responsible for directing traffic to the Gateway Load Balancer for further processing (Option B).
* GENEVE Encapsulation:
* The GWLB encapsulates the inbound traffic using the GENEVE protocol. This encapsulated traffic is then sent to FortiGate instances for security inspection. The use of GENEVE ensures that the original traffic context is preserved and can be analyzed by FortiGate (Option D).
* Other Options Analysis:
* Option A is incorrect because GWLB does not forward traffic without encapsulation in its dedicated subnet.
* Option C is incorrect as the inbound traffic is directed to the GWLB endpoint first, not directly to the application subnet.
References:
* AWS Gateway Load Balancer Documentation: AWS GWLB
* GENEVE Protocol Overview: GENEVE Protocol
NEW QUESTION # 39
......
New Fortinet NSE6_WCS-7.0 Dumps & Questions: https://www.dumps4pdf.com/NSE6_WCS-7.0-valid-braindumps.html
Try with 100% Real Exam Questions and Answers: https://drive.google.com/open?id=10ioeAd3299uJfUSCXBMMWljIVwZ2SiC_
